Zone Input: 1
Waterproof: Yes
Viewing Angle (°): 160
Type: Entrance Machine
Technology: DIGITAL
Size: 130 mm*96 mm*28.5 mm (5.12" * 3.78" * 1.12")
Resolution: 1080p
Power Consumption: ≤ 12W
Power: DC 48V 1A Standard PoE
Power: ≤ 12W
Origin: Mainland China
Model Number: DH-VTO2202F-P-S2
Material: Plastic
Interoperability: ONVIF; CGI
Installation: Flush/surface mount
Installation: Flush/surface mount
Focal Length: 1.9 mm
Doorbell: Yes
Display Size: N/A
Connection Type: Wireless
Connection Method: WIRED
Camera Sensor type: CMOS
Camera: color
Brand Name: Dahua
Answering Mode: TELEPHONE

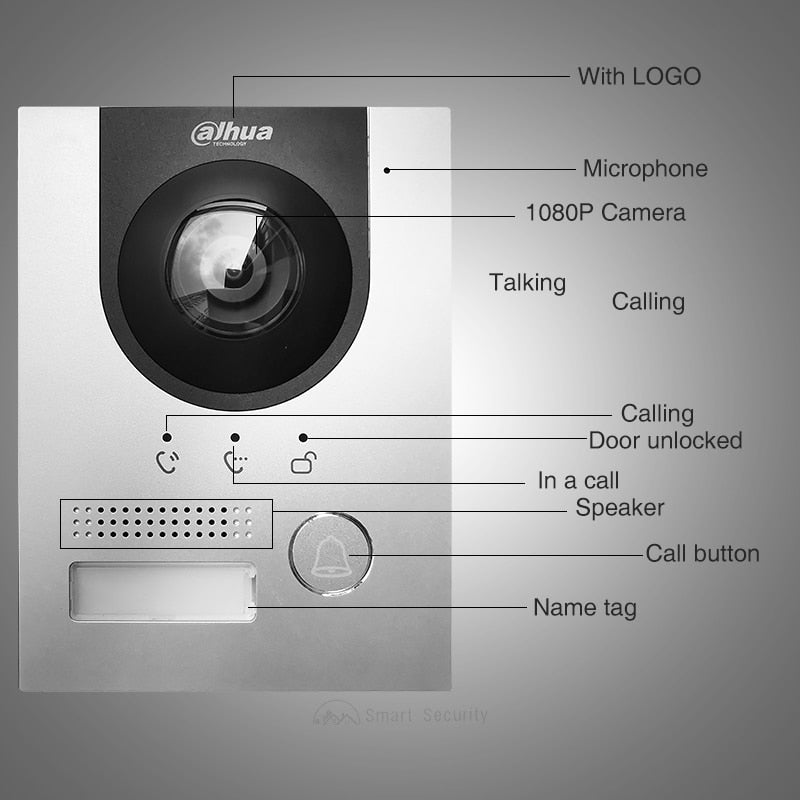

Dahua Original VTO2202F-P-S2 IP Video Intercom
Languages: English, Nederlands, Français, Deutschs, Italiano, Polska, Português, Русский, Español, Türkçe, Украинский, العربية, tiếng việt, Español(LatinoAmerica), Português(Brasil)
Installation (VTO+VTM05R):
2-wire IP Villa Door Station
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux Operation System |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF; CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera |
1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
Horizontal: 168.6°; vertical: 87.1; diagonal:176.7° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
1.9 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Resolution |
50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
25 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
256 Kbps to 4 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Compensation |
Auto IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto (ICR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711u |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
Built-in speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Mode |
2-way voice communication |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Enhancement |
Echo suppression/digital noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
16 KHz, 16 Bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Status Indicator Light |
3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electric Lock |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output |
1-ch 12 VDC 100mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exit Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Status Detection |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock Control |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
One RJ45 10M/100M network port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
Dahua 2-wire switch (max. power supply distance 50 m) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Flush/surface mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE; FCC; UL |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessory |
Flush/surface mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IK07; IP65 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–30°C to +60°C (–22°F to 140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90% (RH, non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
0 m–3000 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
≤ 12W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.35 kg (0.77 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.4 kg (0.88 lb) |
